Pricing
EUR 1,646
USD 1,789 / EUR 1,646 / UAH 84,754
Make tremendous amounts of power on pump gas! The Fuel-It! S58 BMW Port Injection Kit is the ultimate fueling solution for your S58 powered BMW. It adds six supplemental low-pressure fuel injectors, depending on injector choice allowing fueling of up to 1000+ whp using water/methanol blends.
This kit includes stainless steel BMS Elite braided lines. They feature an inner Teflon seal for leak-free operation, stainless steel braid, a black outer nylon mesh for abrasion resistance and a stealthy look.
These lines not only look great they are also equipped with BMS Elite AN fittings and can withstand extreme pressure and temperature conditions. The included Burger Motorsports DDP 5800 water/methanol alcohol Injection pump is a heavy-duty pump used in all of our BMS Water Injection kits.
200 psi bypass for smooth and high pressure and 1.3 GPM open flow. Made in the USA. The Fuel-It! CANfuel Sequential Port Fuel Injection Controller attaches to the JB4 allowing it to directly control both traditional port injection kits and WMI port injection kits.
Stealth Tank for G20 G22 & G80 M3 & G82 M4 BMW tucks neatly in the side pocket of your trunk! This water/methanol injection (WMI) tank is a completely custom design that neatly hides away in the left side trunk cavity found in most G20 G22 & G80 M3 & G82 M4 BMW vehicles.
The pump mounts directly to the back of the tank allowing for a quick, clean, and completely stealth installation. The bottom of the tank includes a rear sump allowing for consistent performance even as the tank drains.
Includes 2-way vented black plastic cap and a compression pump feed fitting. OPTIONAL: Fuel-It! CANfuel Sequential Port Fuel Injection ControllerSave $100.00 When purchased with this manifold. Fuel-It!
CANfuel allows your ECU to control up to 8 fuel injectors sequentially in addition to an ethanol content sensor, low fuel pressure sensor, extra pressure sensors, EGT probes, external fuel pumps, and much more. All using the same CANbus technology your ECU already uses to communicate with factory control modules!

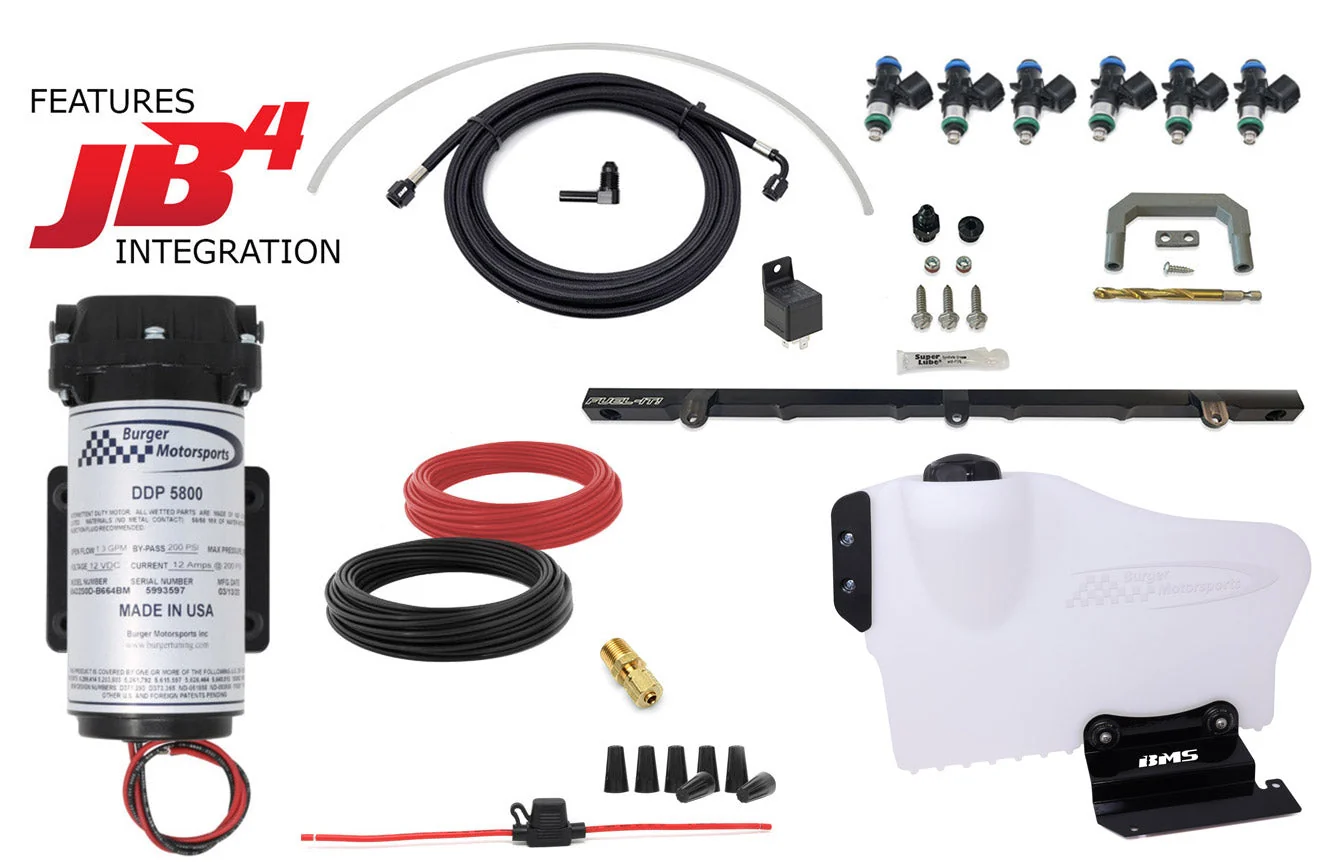

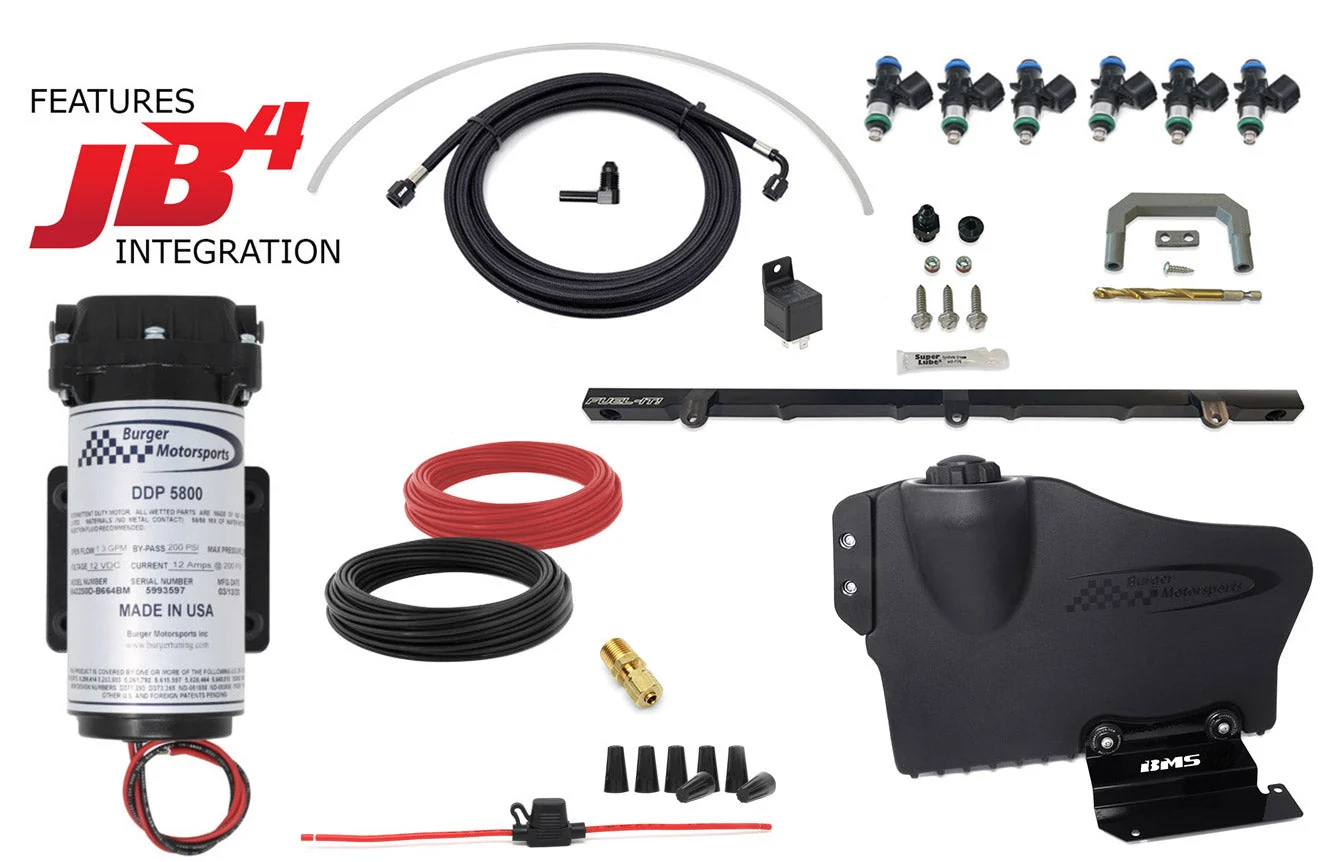

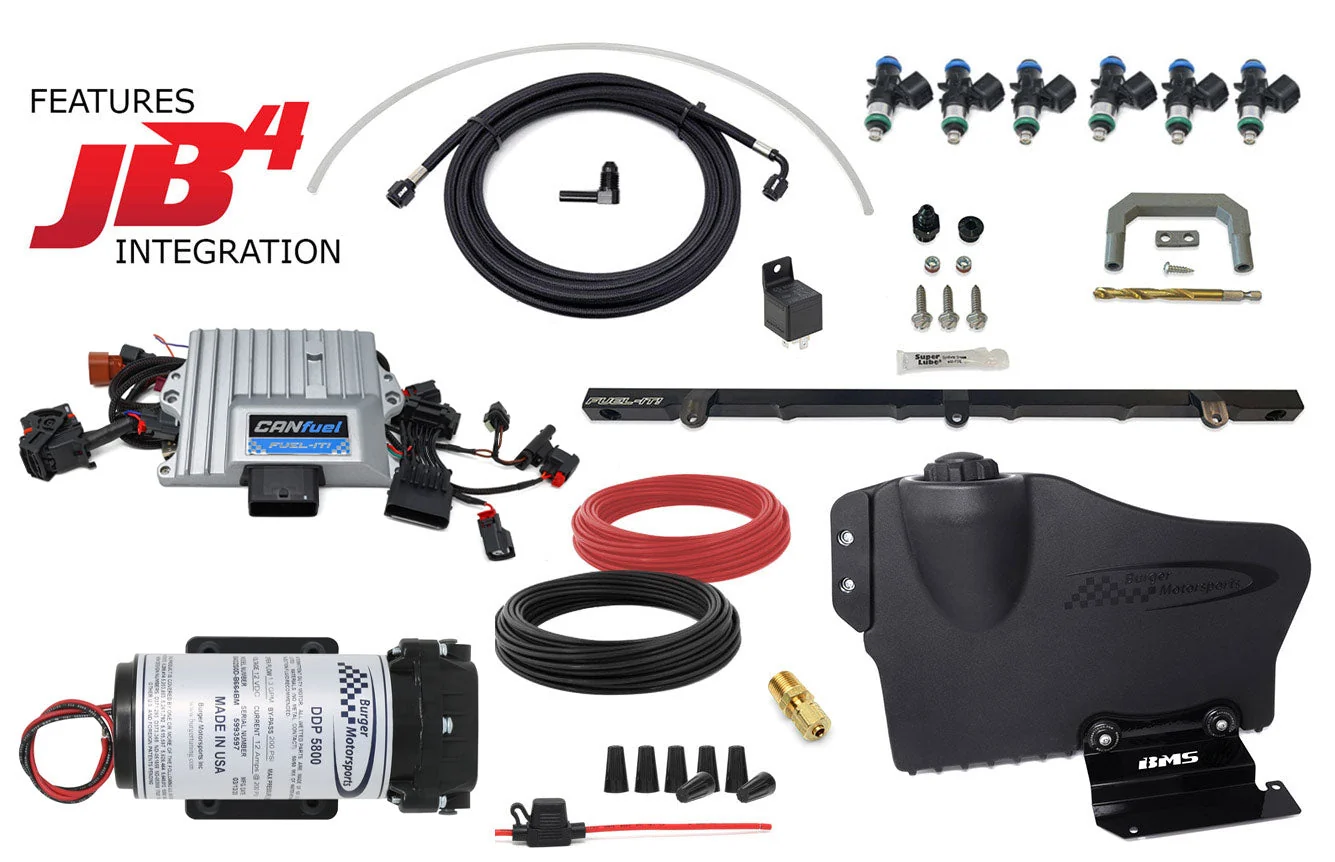

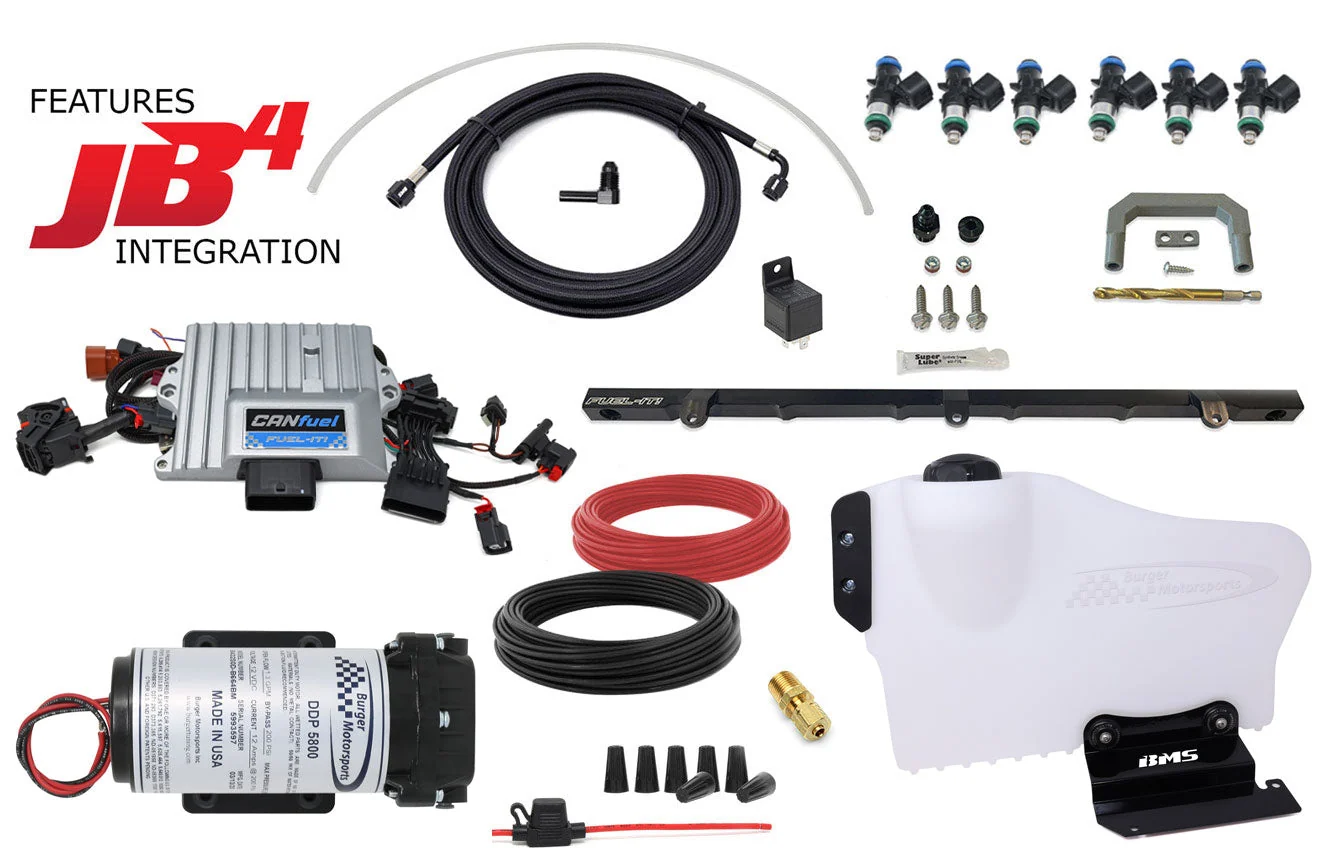

CANfuel SequentialPort Fuel Injection Controller or to purchase separately. S58 Billet Fuel Rail (6) 550cc Fuel Injectors (1) 15' Stainless steel braided water/Methanol line with black nylon sheathing (1) BMS Water/Methanol Pump (4) Pump Screws - Phillips Passivated Stainless 10-32 Thread, 1-1/4" Long (1) -6AN ORB fitting (1) -6AN ORB plug (2) 1/8" NPT plugs (3) 14 x 1 Stainless steel screws to secure the rail to your manifold (1) Injector installation jig (1) 8 x 3/4" screw for the installation jig (1) 21/64 drill bit to open the factory injector bosses (1) Superlube® (1) BMS JB4 Port Injection Controller (7) Wire nuts (1) inline fuse holder (1) 12V Relay (1) 15' of red power wire (1) 15' of black power wire 3.5 Gallon Tank:
Port Injection Rail Install Guide
Compatible with your vehicle
