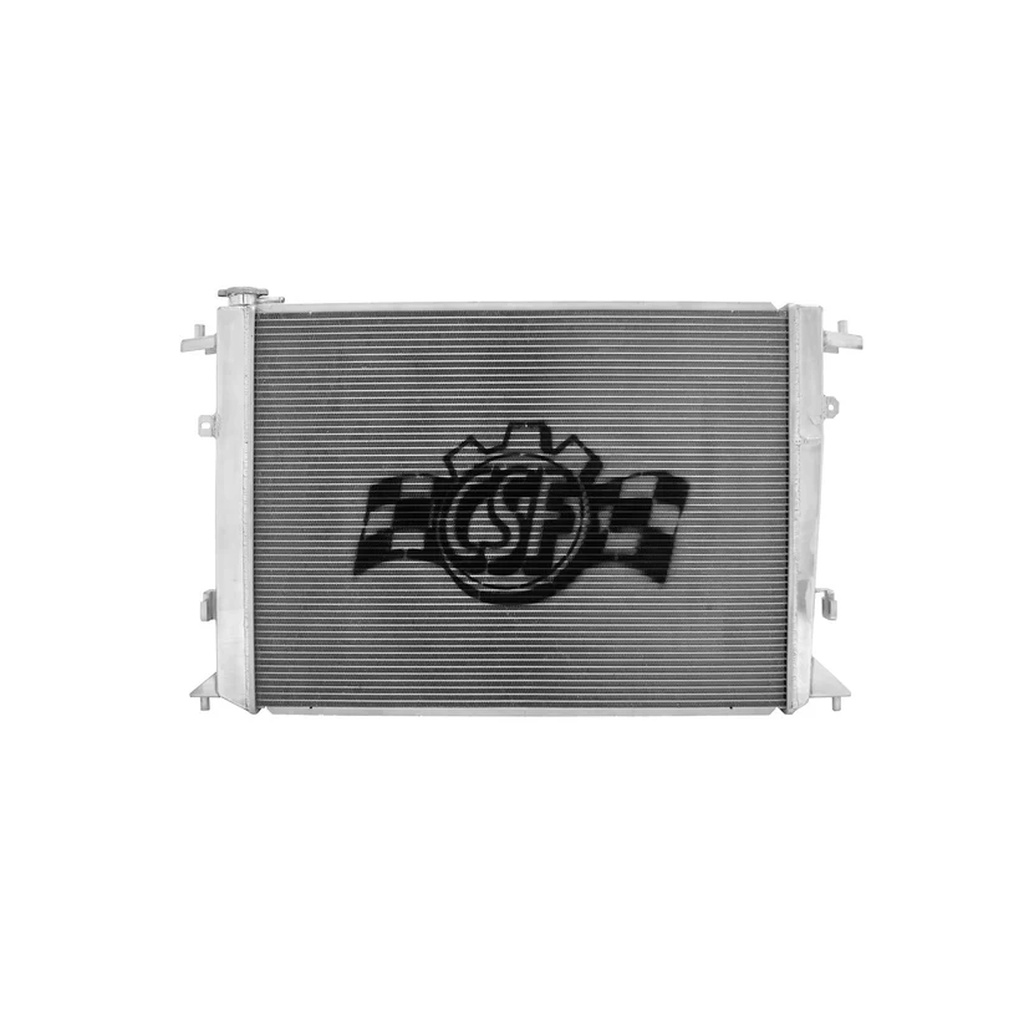

CSF 7038 Radiator for HYUNDAI Genesis 3.8L 2010-2012

Part number7038

With over fifty years of experience in radiator manufacturing, CSF is the obvious choice when it comes to keeping your Genesis Coupe's engine cool and performing at its peak. Designed for track day or track use, this high-performance, all-aluminum radiator is a must-have for both high-horsepower street cars and race cars that require enhanced cooling efficiency in motorsport environments. This radiator features a 2-row core with CSF's exclusive "B-Tube" technology: Unlike conventional "O" shaped radiator tubes, CSF uses specially designed "B" shaped tubes. These B-tubes are meticulously formed and then seam-soldered to seal them. CSF can use thinner, lighter aluminum material (with greater cooling efficiency) because this design is actually stronger than conventional "O" shape welded tubes. The design (inlet opening in the middle of the tube, seam-soldered) increases the surface area of the tubes' heat exchange by approximately 15% compared to conventional tubes – the efficiency of two smaller tubes versus one larger tube under the same space constraints. With the B-tubes, "dual-row laminar flow" can be achieved. CSF also utilizes highly efficient fin stocks that are meticulously and precisely aligned to maximize airflow through the radiator core. Fin characteristics are carefully measured and calculated for each application and tested for maximum heat dissipation efficiency in a wind tunnel laboratory.

The CSF Genesis Coupe Radiator is a true "Drop-in fit" design, requiring no modifications for installation. OE-style mounting brackets are CNC-machined and welded for maximum strength. The inlet/outlet connections are designed to match the OEM specifications, allowing you to use either OEM or aftermarket hoses. Trust the cooling experts at CSF for the most efficient, high-quality, and reliable radiators.
