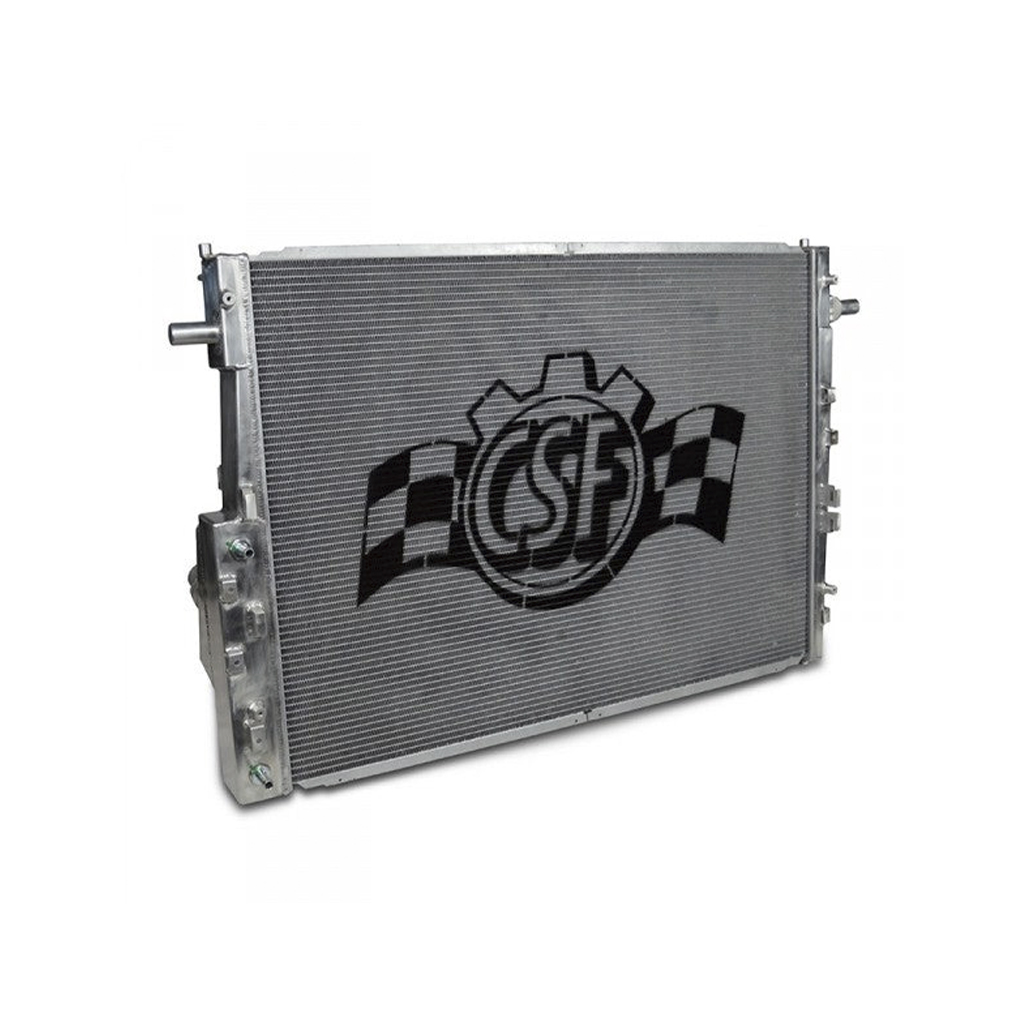

CSF 7062 Radiator for FORD Super Duty 6.4L Turbo Diesel 2008-2010

Engineered for both on-road and off-road use, the Super Duty Radiator is a must-have for off-road enthusiasts, overlanders, and adventurers. This radiator features a 2-row core with CSF's exclusive B-Tube Technology: Unlike conventional "O" style oval radiator tubes, CSF utilizes specially designed "B" shape tubes. These B-tubes are meticulously formed and then seam-soldered to seal. CSF can use thinner, lighter aluminum material (with greater cooling efficiency) because this design is actually stronger than conventional "O" style welded tubes. The design (inlet opening in the middle of the tube, seam-soldered) increases the surface area of the tubes' heat exchange by approximately 15% compared to conventional tubes – the efficiency of two smaller tubes compared to one larger tube within the same space criteria. With the B-tube, "dual laminar flow" can be achieved. CSF also utilizes highly efficient fin stocks that are carefully and precisely aligned to maximize airflow through the radiator core. Fin characteristics are meticulously measured and calculated for each application and tested for maximum heat dissipation efficiency in a wind tunnel laboratory.

The CSF Super Duty Radiator is a true "Drop-in fit" design, requiring no modifications for installation. OE-style mounting brackets are CNC machined and welded for maximum strength. The inlet/outlet connections are designed to match original connections, allowing you to use OEM or aftermarket hoses. Whether you are off-road racing, towing, or simply driving your vehicle, trust the cooling experts at CSF to install the most efficient, high-quality, and reliable radiators.

Applications

• 2008-2010 Ford F-250 Super Duty - Turbocharged 6.4L V8
• 2010 Ford F-350 Super Duty - Turbocharged 6.4L V8
• 2010 Ford F-450 Super Duty - Turbocharged 6.4L V8
• 2010 Ford F-550 Super Duty - Turbocharged 6.4L V8

OEM Part Numbers

• Ford: 8C3Z 8009 B
• Ford: 8C3Z-8009-B
• Ford: 8C3Z8009B
• Ford: 8C3Z 8009 F
• Ford: 8C3Z-8009-F
• Ford: 8C3Z8009F
