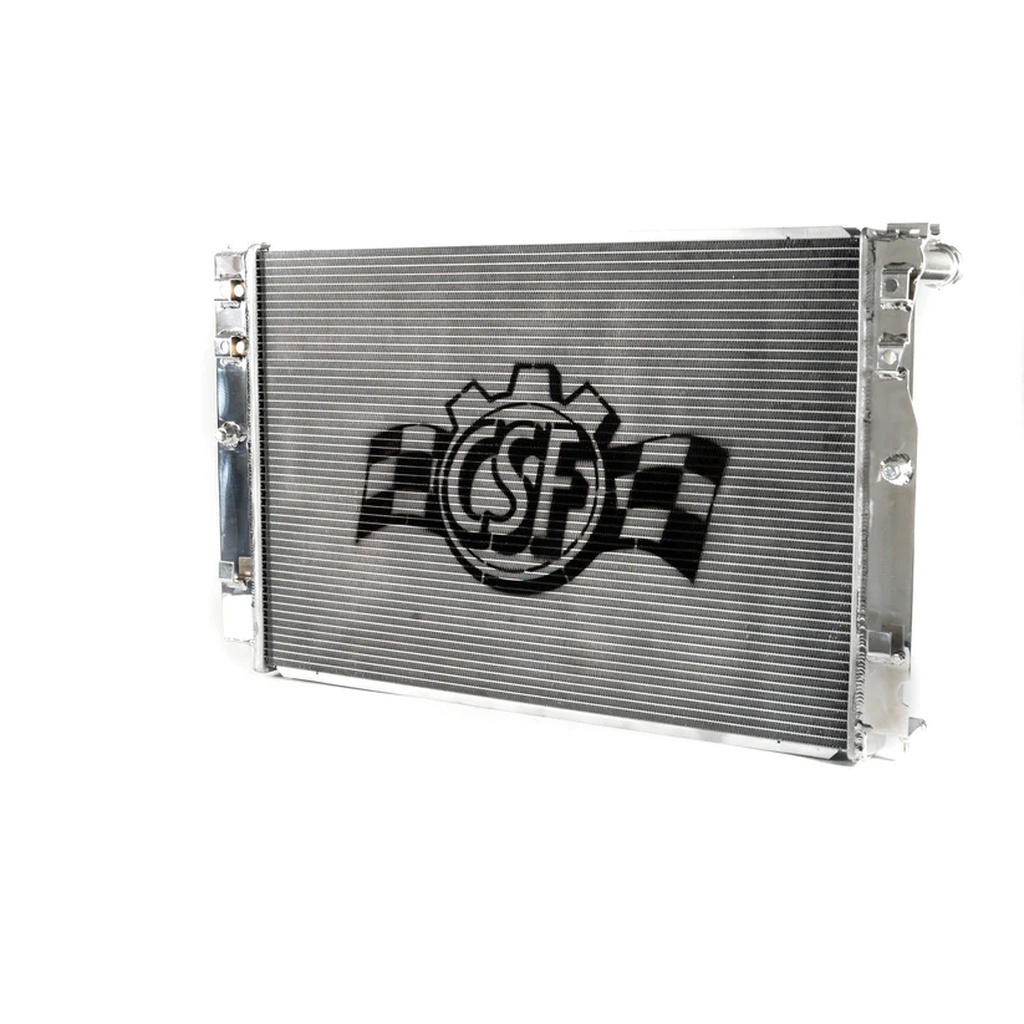

CSF 7071 Radiator for AUDI S4 (B5) 1997 - 2002

Part number7071

With over fifty years of experience in radiator manufacturing, CSF is the clear choice when it comes to keeping your B5 S4's engine cool and performing at its peak. Designed for track-day or racing applications, this high-performance, all-aluminum radiator is a must-have for both high-performance street cars and race cars that require enhanced cooling efficiency in motorsport environments. This radiator features a 2-row core with CSF's exclusive "B-Tube" technology: Unlike standard "O" style oval radiator tubes, CSF uses specially designed "B-shaped" tubes. These B-tubes are carefully formed and then seam-soldered to seal them. CSF can use thinner, lighter aluminum material (with greater cooling efficiency) because this design is actually stronger than standard "O" style welded tubes. The design (inlet opening in the middle of the tube, seam-soldered) increases the surface area of the tubes' heat exchange by approximately 15% compared to standard tubes – the efficiency of two smaller tubes compared to one larger tube under the same space constraints. With B-tubes, "dual laminar flow" can be achieved. CSF also utilizes highly efficient fin stock that is carefully and precisely aligned to maximize airflow through the radiator core. Fin characteristics are carefully measured and calculated for each application and tested for maximum heat dissipation efficiency in a wind tunnel laboratory.

The CSF B5 S4 Radiator is a true "drop-in fit" design, requiring no modifications for installation. OE-style mounting brackets are CNC-machined and welded for maximum strength. The inlet/outlet connections are designed to match the original connections, so you can use OEM or aftermarket hoses. Trust the cooling experts at CSF for the most efficient, high-quality, and reliable radiators.
