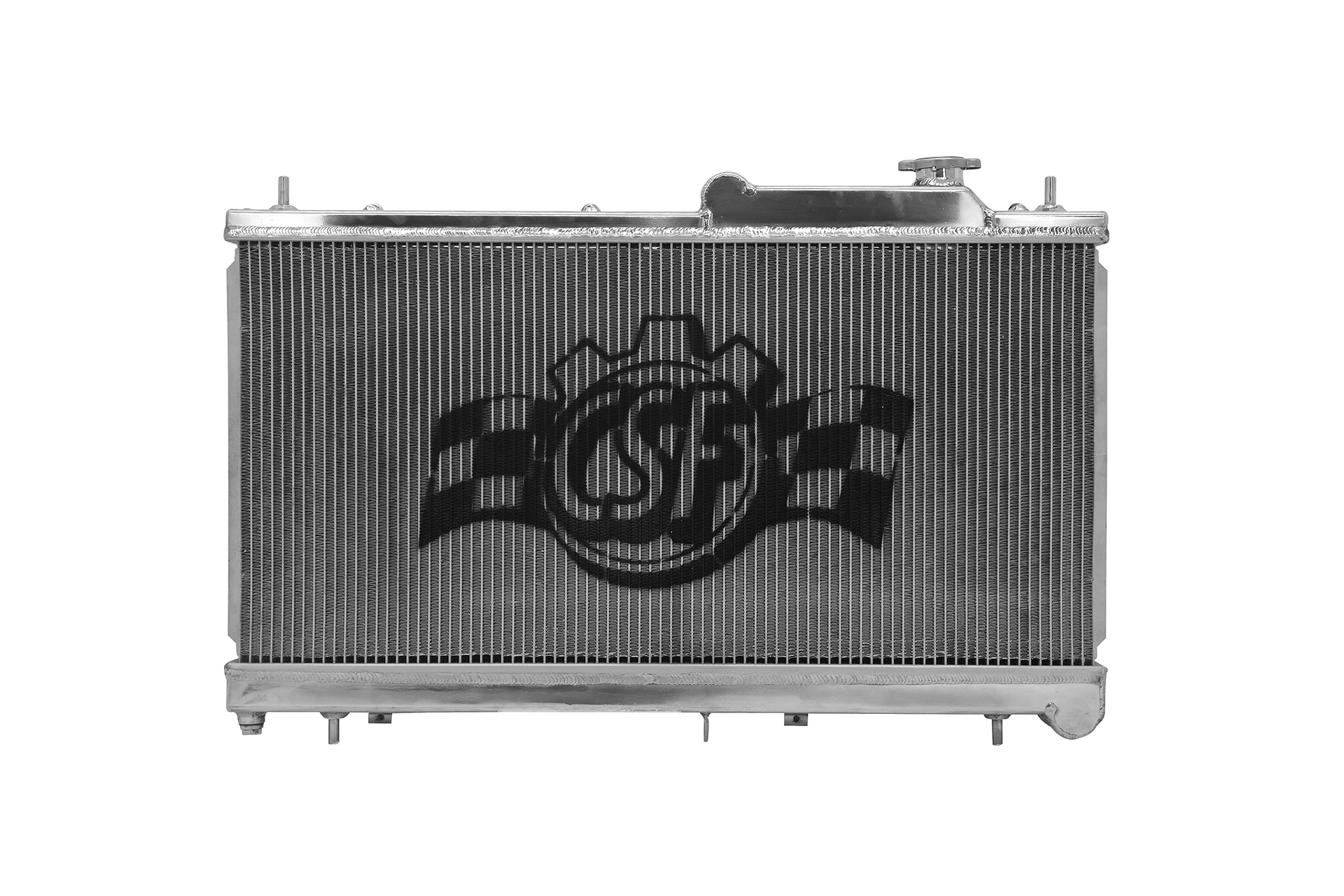

With over fifty years of experience in radiator manufacturing, CSF is the obvious choice when it comes to keeping your Subaru WRX/STI engine cool and performing at its peak. Designed for track or race applications, this high-performance, all-aluminum radiator is a must-have for both high-horsepower vehicles and race cars that require enhanced cooling efficiency in motorsport environments. This radiator features a 2-row core with CSF's exclusive B-Tube Technology: Unlike conventional "O" style oval radiator tubes, CSF uses specially engineered "B" style tubes. These B-tubes are carefully formed and seam-soldered to seal them. CSF can use thinner, lighter aluminum material (with greater cooling efficiency) because this design is actually stronger than conventional "O" style seam-soldered tubes. The design (inlet opening in the middle of the tube, seam-soldered) increases the surface area of the tubes' heat exchange by approximately 15% compared to conventional tubes – the efficiency of two smaller tubes compared to one larger tube under the same space constraints. With B-tubes, "dual-row laminar flow" can be achieved. CSF also utilizes highly efficient fin plates that are carefully and precisely aligned to maximize airflow through the radiator core. Fin characteristics are carefully measured and calculated for each application and tested for maximum heat dissipation efficiency in a wind tunnel laboratory.
The CSF Radiator for Subaru WRX/STI is a true "Drop-in fit" design, requiring no modifications for installation. OE-style mounting brackets are CNC-machined and welded for maximum strength. The inlet/outlet ports are designed to match the OEM ports, so you can use OEM or aftermarket hoses. Trust the cooling experts at CSF for the most efficient, high-quality, and reliable radiators.
Applications
- 2016-2017 Subaru Crosstrek Base - H4
- 2016 Subaru Crosstrek Hybrid - H4
- 2016 Subaru Crosstrek Hybrid Touring - H4
- 2016-2017 Subaru Crosstrek Limited - H4
- 2016-2017 Subaru Crosstrek Premium - H4
- 2016-2017 Subaru Crosstrek Sport - H4
- 2016-2017 Subaru Crosstrek Touring - H4
- 2009-2013 Subaru Forester X - H4 (Manual)
- 2009-2013 Subaru Forester X Premium - H4 (Manual)
- 2009-2013 Subaru Forester X Touring - H4 (Manual)
- 2009 Subaru Impreza 2.5 GT - Turbocharged 2.5L H4 (Manual)
- 2012-2016 Subaru Impreza Base - H4
- 2012-2016 Subaru Impreza Limited - H4
- 2012-2016 Subaru Impreza Premium - H4
- 2012-2015 Subaru Impreza Sport - H4
- 2012-2016 Subaru Impreza Sport Limited - H4
- 2012-2016 Subaru Impreza Sport Premium - H4
- 2012-2016 Subaru Impreza Touring - H4
- 2008-2014 Subaru Impreza WRX - Turbocharged 2.5L H4 (Manual)
- 2008-2014 Subaru Impreza WRX STI - Turbocharged 2.5L H4 (Manual)
- 2006-2009 Subaru Legacy 2.5i - H4 (Manual)
- 2007-2009 Subaru Legacy 2.5i Limited - H4 (Manual)
- 2007-2009 Subaru Legacy 2.5i Special Edition - H4 (Manual)
- 2009 Subaru Legacy 2.5i Touring - H4 (Manual)
- 2005-2008 Subaru Legacy GT - H4 (Manual)
- 2005-2009 Subaru Legacy GT Limited - H4 (Manual)
- 2006-2009 Subaru Legacy GT spec.B - H4 (Manual)
- 2005 Subaru Legacy i - H4 (Manual)
- 2005-2008 Subaru Legacy Limited - H4 (Manual)
- 2008 Subaru Legacy Touring - H4 (Manual)
- 2008 Subaru Outback 2.5 XT - H4 (Manual)
- 2006-2009 Subaru Outback 2.5i - H4 (Manual)
- 2007 Subaru Outback 2.5i Basic - H4 (Manual)
- 2008 Subaru Outback 2.5i L.L. Bean Edition - H4 (Manual)
- 2006-2009 Subaru Outback 2.5i Limited - H4 (Manual)
- 2008 Subaru Outback 2.5i Limited L.L. Bean Edition - H4 (Manual)
- 2009 Subaru Outback 2.5i Special Edition - H4 (Manual)
- 2008 Subaru Outback Base - H4 (Manual)
- 2005 Subaru Outback i - H4 (Manual)
- 2005-2008 Subaru Outback Limited - H4 (Manual)
- 2008 Subaru Outback Premier - H4 (Manual)
- 2008 Subaru Outback Touring - H4 (Manual)
- 2005-2006 Subaru Outback XT - H4 (Manual)
- 2005-2009 Subaru Outback XT Limited - H4 (Manual)
- 2016-2021 Subaru WRX - Turbocharged 2.0L H4
- 2015-2021 Subaru WRX STI - Turbocharged 2.0L H4
OEM Part Numbers
- Subaru: 45119FG010
- Subaru: 45119FG030
- Subaru: 45119SC090
- Subaru: 45119AG010
- Subaru: 45111AG09A
- Subaru: 45111AG01A
- Subaru: 45119SC010
- Subaru: 45119VA000
- Subaru: 45119VA010
