CSF 7223 Cooling Radiator for CHEVROLET Corvette C6 2005-2013

Part number7223

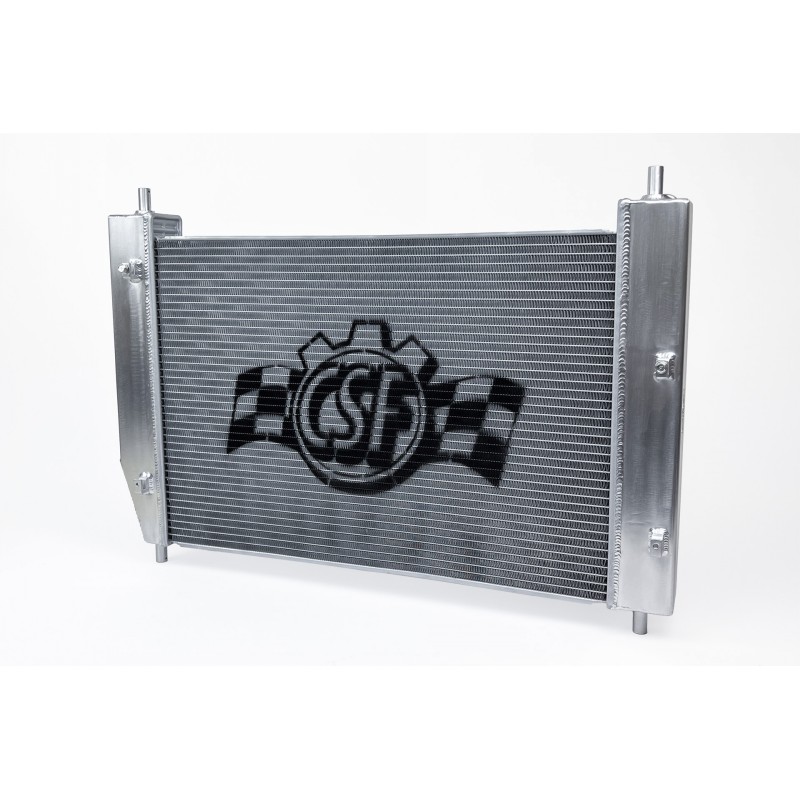

The CSF C6 Corvette Radiator features a 193% larger 2-row, 52mm aluminum core. This increases the radiator's fluid capacity and enhances its heat dissipation capabilities. CSF's exclusive B-Tube technology increases heat transfer by approximately 15% compared to standard oval welded tubes. Additionally, 8mm hyper-efficient multi-louvered fins maximize airflow through the radiator core for optimal performance. CSF's improved core airflow characteristics provide superior cooling when paired with front-mounted intercoolers and heat exchangers for supercharger and turbocharger kits.

A 100% TIG-welded aluminum construction enhances the overall strength of the radiator. This increases durability and longevity, ensuring it can withstand demanding driving conditions. The CSF radiator is a direct fit installation and requires no modifications or cutting. The radiator height has also been slightly reduced to create additional clearance for supercharger fitment.

Application:

OEM Part Numbers:

Benefits

2-Row, 52mm Ultra-High Performance Core
CSF Exclusive B-Tube Technology Cooling Tubes
8mm Hyper-Efficient Multi-Louvered Fins for Maximum Surface Contact
Shorter Core Height for Supercharger Clearance
No Modification to Radiator Support or Cutting Required
Fits All OEM and Aftermarket Intake Systems
CNC Machined Mounting Brackets and OEM-Style Inlet/Outlet Ports
Mounting Pins Feature Cotter Pin Holes for A&A Corvette Upper Shroud Mounting
Integrated Engine Oil Cooler and Automatic Transmission Cooler with OEM-Style Quick Connect Fittings
100% TIG-Welded All Aluminum Construction
Brushed Hand Finish
"Plug-and-Play" Installation Requires Absolutely No Modifications
Custom Leak Tested and Pressure Tested
2-Year Limited Warranty
2005-2013 Chevrolet C6 Corvette (Excludes ZR1 and Z06 w/Z07 Performance Package)
