CSF

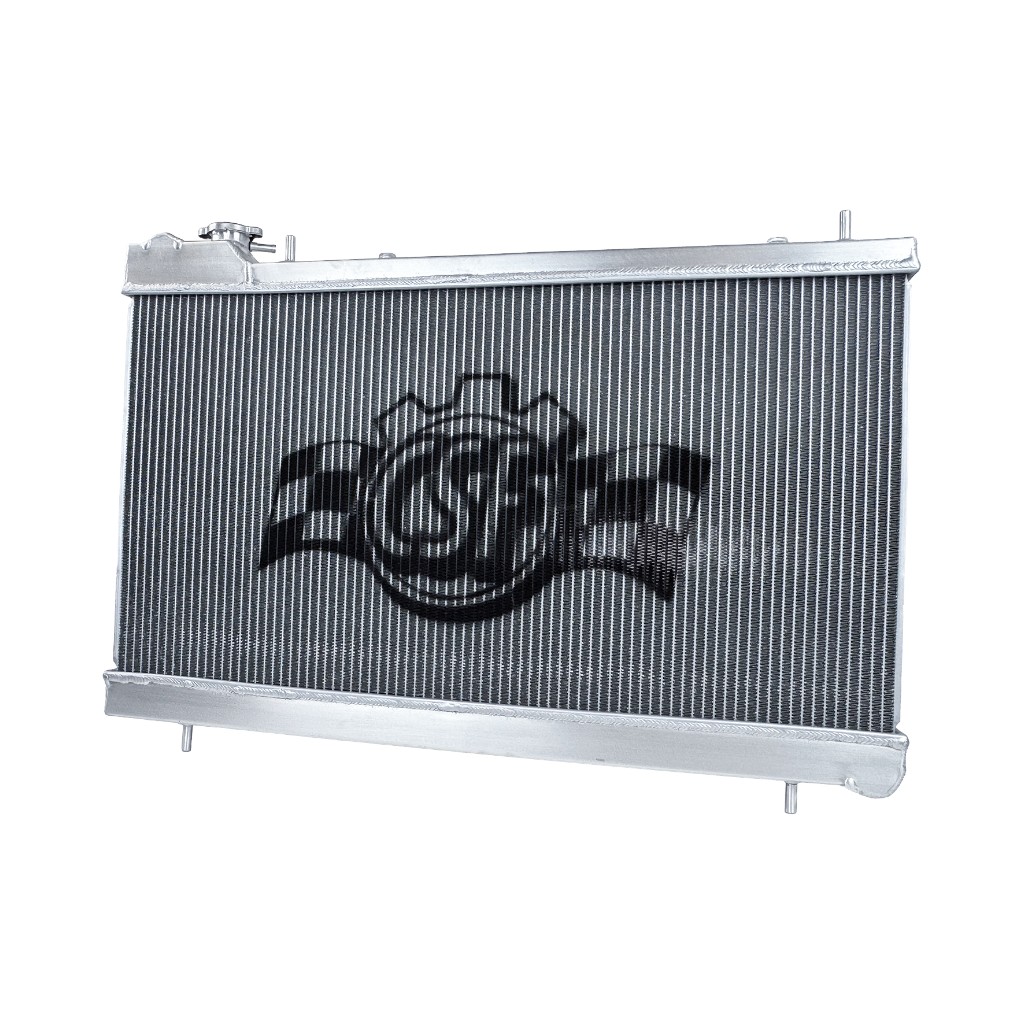

CSF 7235 High-Performance Cooling Radiator for SUBARU Forester XT (Manual Transmission Only) 2006-2008
The CSF 42mm 2-Row all-aluminum core is more than twice the size of the OEM core. The thicker core, dual-row cooling, and increased fluid capacity significantly enhance the amount of heat the system can absorb and dissipate. CSF's exclusive B-Tube technology increases heat dissipation by approximately 15% compared to standard oval welded tubes. Additionally, the super-efficient multi-louvered fins maximize airflow through the core for ultimate cooling performance.
The 100% TIG-welded all-aluminum construction increases the overall strength of the radiator. This boosts durability and longevity, so you can be confident it will withstand demanding conditions. The CSF radiator is a direct fit installation and requires no modifications or cutting.
Application:
OEM Part Numbers:
Benefits
- 2-Row, 42mm, High-Performance Core
- CSF Exclusive B-Tube Technology Cooling Tubes
- Super-Efficient 6.5mm Multi-Louvered Fins for Maximum Surface Contact
- CNC Machined OEM-Style Mounting Brackets & Inlet/Outlet Bungs
- 100% TIG-Welded, All-Aluminum Construction
- Hand-Brushed Satin Finish
- "Drop-in Fit" Plug-and-Play Installation Requires Absolutely No Modifications
- 1.4 Bar High-Pressure Radiator Cap with Embossed CSF Logo
- Individually Leak Tested & Pressure Tested
- 2-Year Limited Warranty
- 2006-2008 Forester XT Limited (Manual Transmission Only)
- 2008 Forester Sports 2.5 XT (Manual Transmission Only)
- 2008 Forester 2.5 XT (Manual Transmission Only)
- Subaru: 45111-SA141
Specifications
- Part number
- 7235
- Dimensions
- 78.74 mm × 55.372 mm × 16.002 mm
- Weight
- 7.53 kg
