CSF 8200S High-Temp Gasket for B58

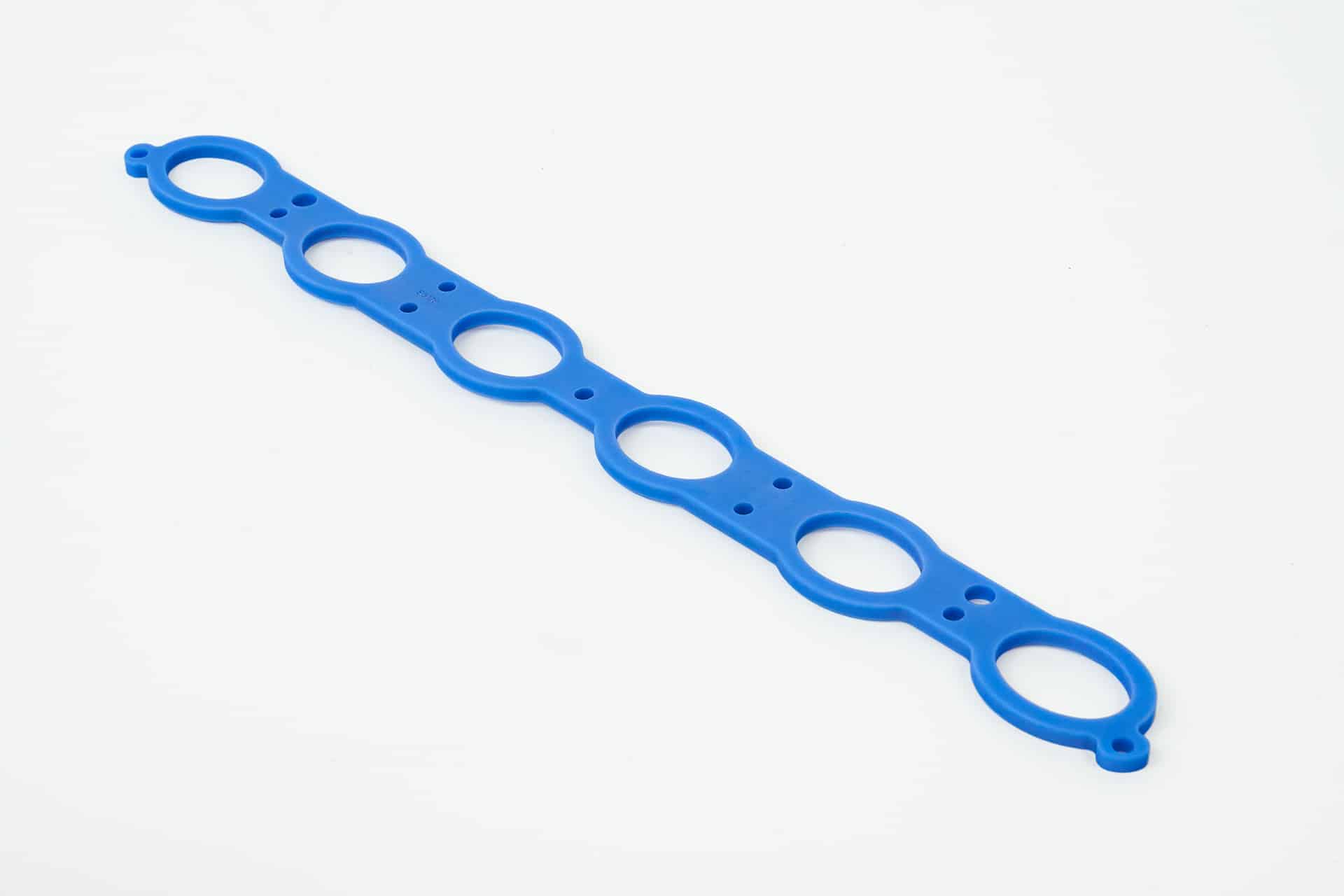

The CSF Thermal Rejection Spacer is the next-level upgrade for the B58 Super Manifold (CSF #8200). Manufactured from KIYLEX, a patented, revolutionary, next-generation high-performance polymer. KIYLEX is as strong as aluminum and can withstand temperatures up to 1100°F. This spacer is designed to insulate the intake manifold from conductive heat transfer from the cylinder head. This thermal barrier lowers manifold temperatures, which helps reduce Intake Air Temperatures (IATs), improve intercooler efficiency, and combat heat soak. CSF is the exclusive distributor of the KIYLEX intake manifold spacer for the B58 engine. Adding a thermal spacer is especially beneficial for drag racing applications where cars typically sit between runs. This causes the liquid-to-air manifold to heat up significantly as airflow is not passing through the front-mount intercooler (responsible for cooling the charge air coolant running through the manifold) while the car is idling. This results in initial IATs on subsequent runs being higher than on the first run. The B58 Super Manifold is constructed from Billet Aluminum and is 100% Tig Welded for strength, allowing it to withstand higher boost pressures compared to the OEM plastic manifold. Aluminum has a higher thermal conductivity than plastic, resulting in a higher rate of heat transfer between the cylinder head and the manifold. Adding the Thermal Rejection Spacer reduces heat transfer between the two metal components (cylinder head and manifold). The spacer absorbs heat from the cylinder head and dissipates it rather than transferring it to the manifold. The Thermal Rejection Competition Spacer was designed for motorsport competition vehicles that require the absolute best cooling to gain a competitive edge. With all that said, installing this spacer on any vehicle equipped with the CSF B58 Super Manifold offers significant benefits.

Application

• 2020-2023 BMW G30 540i - Turbocharged 3.0L L6
• 2020-2023 BMW G30 540i xDrive - Turbocharged 3.0L L6
• 2018-2022 BMW G11 740i - Turbocharged 3.0L L6
• 2018-2022 BMW G11 740i xDrive - Turbocharged 3.0L L6
• 2020-2022 BMW G11 745e xDrive - Turbocharged 3.0L L6
• 2020-2024 BMW G1X 840i - Turbocharged 3.0L L6
• 2020-2024 BMW G1X 840i Gran Coupe - Turbocharged 3.0L L6
• 2020-2024 BMW G1X 840i xDrive - Turbocharged 3.0L L6
• 2020-2024 BMW G1X 840i xDrive Gran Coupe - Turbocharged 3.0L L6
• 2023+ BMW G42 M240i - Turbocharged 3.0L L6
• 2022+ BMW G42 M240i xDrive - Turbocharged 3.0L L6
• 2020-2024 BMW G2X M340i - Turbocharged 3.0L L6
• 2020-2024 BMW G2X M340i xDrive - Turbocharged 3.0L L6
• 2021-2024 BMW G2X M440i - Turbocharged 3.0L L6
• 2024+ BMW G2X M440i Gran Coupe - Turbocharged 3.0L L6
• 2021-2024 BMW G2X M440i xDrive - Turbocharged 3.0L L6
• 2022+ BMW G2X M440i xDrive Gran Coupe - Turbocharged 3.0L L6
• 2020-2024 BMW G01 X3 M40i - Turbocharged 3.0L L6
• 2020-2024 BMW G02 X4 M40i - Turbocharged 3.0L L6
• 2020-2024 BMW G05 X5 sDrive40i - Turbocharged 3.0L L6
• 2019-2024 BMW G05 X5 xDrive40i - Turbocharged 3.0L L6
• 2021-2023 BMW G05 X5 xDrive45e - Turbocharged 3.0L L6
• 2024+ BMW G05 X5 xDrive50e - Turbocharged 3.0L L6
• 2020-2021 BMW G06 X6 sDrive40i - Turbocharged 3.0L L6
• 2020-2024 BMW G06 X6 xDrive40i - Turbocharged 3.0L L6
• 2020-2024 BMW G07 X7 xDrive40i - Turbocharged 3.0L L6
• 2020-2024 BMW G29 Z4 M40i - Turbocharged 3.0L L6
• 2024+ Toyota GR Supra 45th Anniversary Edition - 3.0L L6
• 2023+ Toyota GR Supra A91-MT Edition - 3.0L L6
• 2023+ Toyota GR Supra Premium - 3.0L L6
• 2024+ Toyota GR Supra Premium 45th Anniversary Edition - 3.0L L6
• 2020-2022 Toyota GR Supra - Turbocharged 3.0L L6
• 2020-2024 Toyota GR Supra - 3.0L L6

OEM Part Numbers

• *for CSF 8200/8200C
