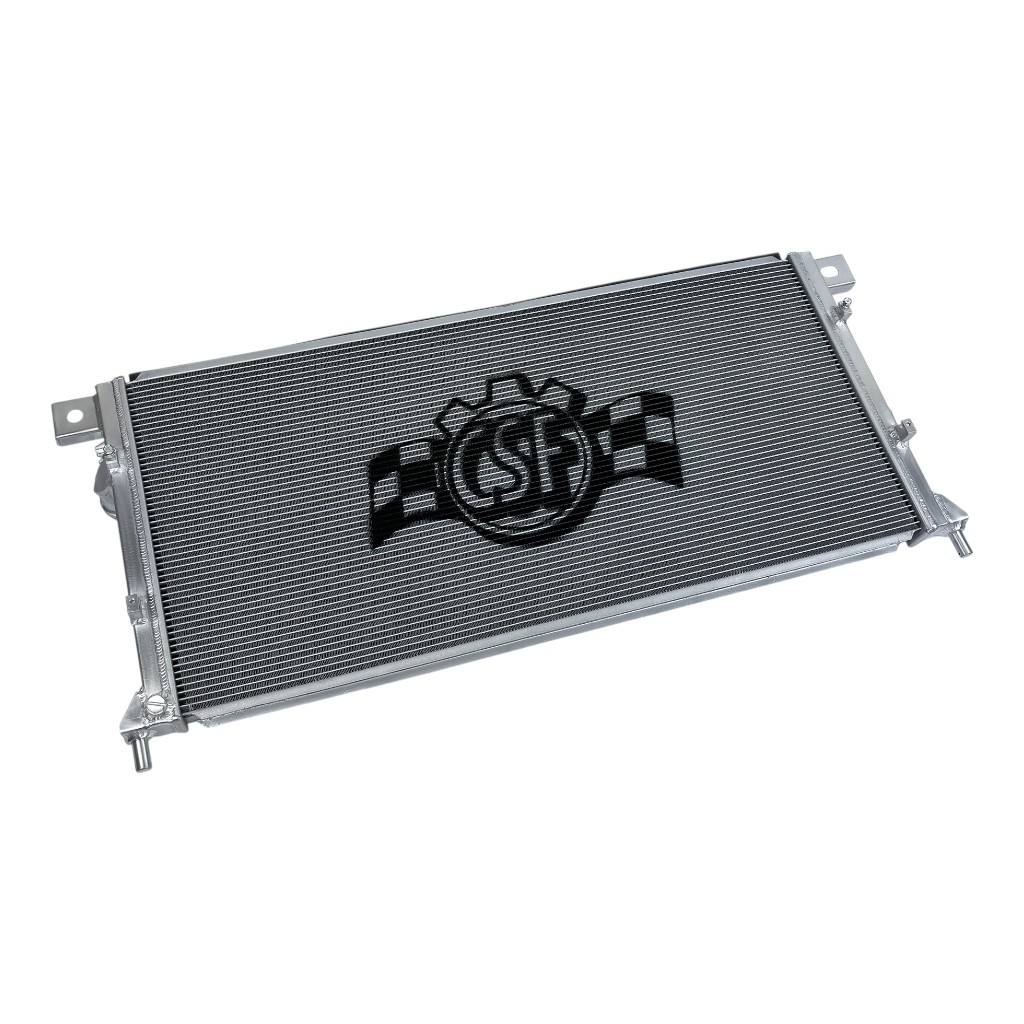

CSF 8228 Cooling Radiator for FORD Ranger / Ranger Raptor / Bronco

The original OEM Ford radiator features a plastic tank and a single-row aluminum core. While considered a quality and durable unit, it has its limitations. These limitations become apparent in serious off-road applications, boosted models, and heavy-duty applications. The CSF radiator utilizes the latest 5mm fin technology. The reduced fin height significantly increases the heat exchange surface area, enhancing overall cooling efficiency and recovery. The larger 2-row, 42mm aluminum core (compared to the OEM 1-row, 28mm core) increases radiator volume by approximately 38%. This significantly improves the core's ability to dissipate heat and increases overall fluid capacity. CSF's exclusive B-Tube technology improves heat transfer by approximately 15% over standard oval welded tubes. Additionally, the super-efficient multi-louvered fins maximize airflow through the core for optimal performance.

The 100% TIG-welded aluminum construction enhances the overall strength of the radiator. This increases robustness and durability, ensuring it can withstand demanding driving conditions. The CSF radiator is a direct fit and requires no modifications or cutting for installation.

Application:

OEM Part Numbers:
