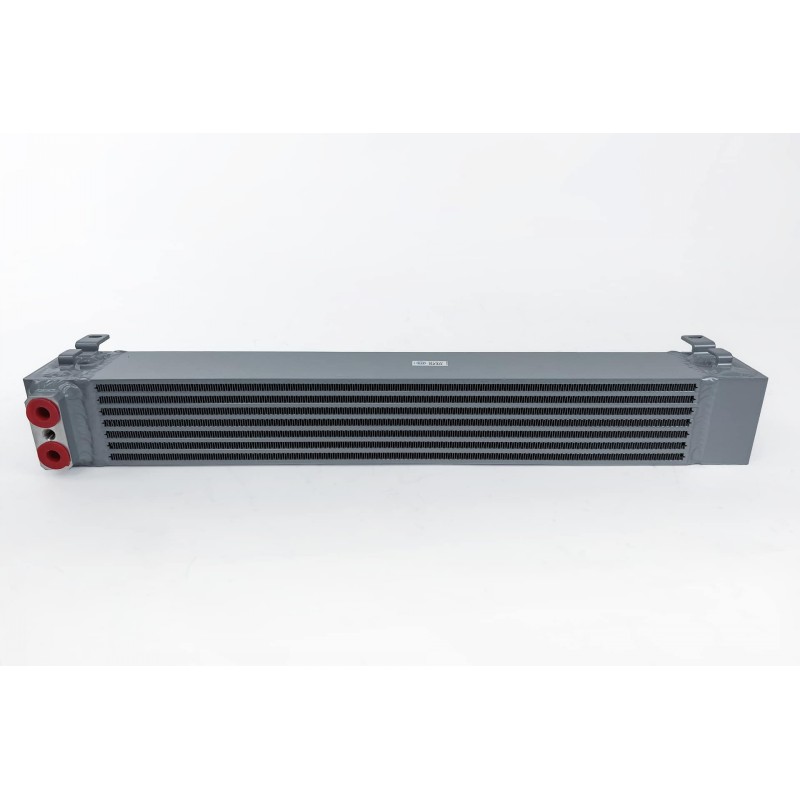

CSF 8240 Oil Cooler for BMW M3 (E36) / M4 (E46)

Part number8240

Installation Note:

S54 Oil Cooler Lines:
CSF recommends using the E36 M3 Euro Spec oil cooler lines for an S54 swap. The stock S54 oil cooler lines can also be used, but may require minor bending and adjustment for proper fitment.

Applications

OEM Part Number:

Supersedes:

Benefits

Unique dual-pass top-and-bottom design for maximum surface area and flow
Fully TIG-welded extruded end tank construction for superior reliability and durability
Billet construction with heavy-duty bar/plate for the most robust and longest-lasting oil cooler on the market
8 rows of maximum cooling via high-density multi-louvered fin pitch
Designed to work with the CSF S54 Swap All-Aluminum Radiator (CSF #7211)
Silver Motorsport finish
Connects to factory oil lines
Can use -10 AN oil line fittings with adapter (CSF #8241)
For S54 swapped vehicles with A/C
For S54 swapped vehicles without A/C, see CSF #8032
E46 M3 Oil Cooler Lines (Hard Line) - BMW PN: 17222283209
E36 Euro Spec Oil Cooler Lines (Hard Line) - BMW PN: 17212227235
1992-1999 BMW E36 3-Series (including M3) S54 / S52 / S50 Swaps
1999-2006 BMW E46 3-Series (excluding M3) S54 Swaps
BMW: 17111723784 (E36)
