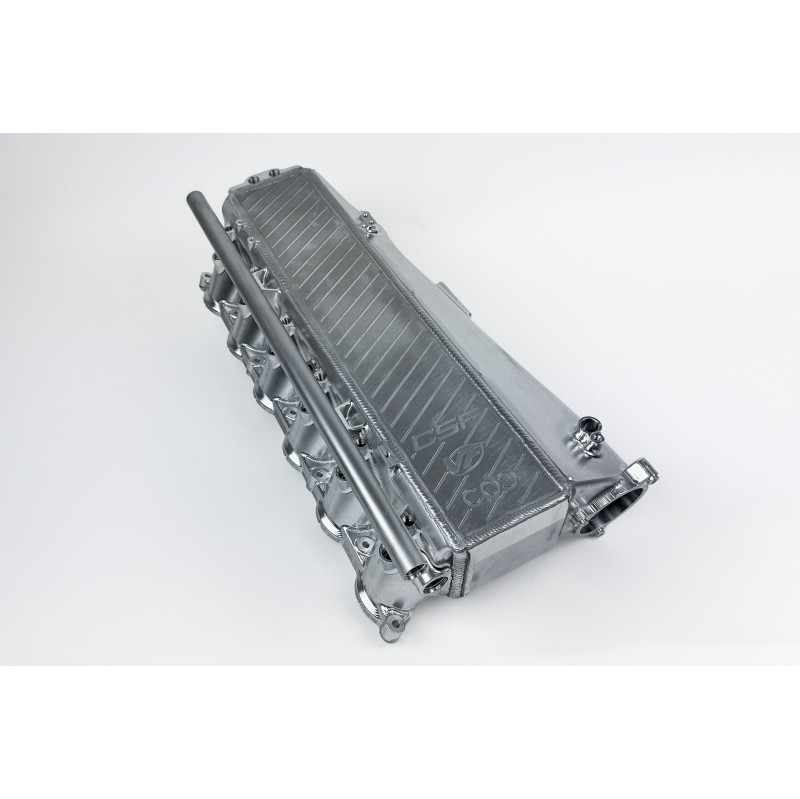

CSF 8300 Intake Manifold for BMW B58 Gen 1

BMW Gen 1 B58 Intake Manifold Features

• Utilizes a high-performance, motorsport-grade plate-and-fin air-to-water core
  • Twice the performance of OEM (12 water cooling rows vs. OEM 6 rows)
• Significantly lower pressure drop across the core compared to OEM
• Designed in SolidWorks using Computational Fluid Dynamics (CFD)
  • Integrated charge divider within the inlet tank evenly distributes airflow throughout the entire core
• Improved slotted mounting holes on the throttle body side allow for easier installation.
• Convenient oil filter access for quick oil changes - no need to remove the manifold for every oil change
  • Balanced design to optimize airflow
• Integrated 1/8″ NPT port plate for additional sensor provisions
• Includes an optional top-feed port injection fuel rail for added fuel capacity
  • Individual injector ports on each cylinder (comes pre-installed)
• Individual 1/8″ NPT ports at the top of each cylinder for nitrous or methanol injection
  • Provides even distribution and spray pattern control for maximum performance and engine protection
• Individual 1/8″ NPT air bleed ports for both inlet/outlet water tanks on the rear of the manifold for easy system air bleeding
• Includes KIYLEX* gasket.
  • Made from KIYLEX® - a patented, revolutionary, high-performance polymer
  • Acts as a heat-blocking thermal barrier between the cylinder head and the intake manifold
  • Proven to reduce intake manifold temperatures by up to 15%.
  • Reduces Intake Air Temperatures (IAT)
• Plug-and-Play design with no modifications required for installation
  • Includes hardware and installation kit with graphical diagrams containing 32 individual parts for ease of installation
• Comes standard with a raw aluminum finish - fabricated by world-leading automotive craftsman Custom Plenum Creations in Australia
  • Optional powder coating and thermal dispersant coating available - CSF #8300C / #8300B

Disclaimer:

During CSF’s quality control and testing process, CSF pressure tests every #8300 manifold at 60-70 PSI for 2-3 minutes. The CSF manifold is not designed to operate at boost pressures above 60 PSI. Any user who chooses to operate their vehicle with the CSF manifold at boost pressures exceeding 60 PSI does so at their own risk. Operating at these pressure levels will void CSF’s limited 2-year warranty.

Applications:

*B58 Engine Only (Gen 1 - B58B30M0 & B58M30O0). Some model years equipped with this engine vary by region

OEM Part Number:

• BMW: 11-61-8-603-913

Top Feed Fuel Rail Kit Included

The CSF manifold comes complete with an extruded fuel rail that can be mounted on the discharge side of the manifold. The AN-8 fuel rail comes with Radium Engineering -8 fittings for a plug and play installation.

Custom Nitrous / Methanol Ports

A 1/8 NPT port on each cylinder can be utilized for nitrous or methanol injection. The CSF manifold provides maximum spray pattern control and even distribution throughout the entire engine.

Vacuum & Sensor Block

CSF has included 3 ports on the inlet side of the manifold. These ports can be utilized for additional sensor provisions or as an additional vacuum source. The three 1/8 NPT ports can be capped off with the included hardware if not in use.

Easy Oil Filter Access With Balanced Design

CSF has provided a recess in the rear of the manifold for easy access to the oil filter. This means you will not have to remove the manifold every time you wish to perform an oil change. While this design feature is not unique to CSF manifolds, CSF is the only company that has addressed the airflow issues that such a recess can create. CSF engineers have designed and tested a balanced protrusion using SolidWorks CFD. This protrusion sits above the recess and compensates for airflow tabulation. This feature ensures a smooth air delivery to the rear of the core for optimal cooling.

Charge Air Divider

Another exclusive feature of the CSF manifold is the charge air divider welded into the inlet tank of the manifold. Given the length of the manifold, VF Engineering engineers wanted to ensure that the volume and velocity of air delivery to all cylinders were equal. After extensive modeling in SolidWorks CFD, a charge air divider was added to the design to ensure the best and most equal cooling to each cylinder of the engine. For optimal performance, the airflow at the rear of the manifold (cylinders 4, 5, and 6) needs to be equal to the airflow at the front of the manifold (cylinders 1, 2, and 3).

Water Tank Inlet/Outlet Air Bleed Ports

Two 1/8 NPT ports are located at the top of the rear water tank. These ports can be utilized for inlet and outlet water temperature sensing as well as air bleeds for easy system bleeding. 1/8 NPT plugs are included. Please follow the BMW or Toyota system air bleeding procedure, which takes approximately 15 minutes.

KIYLEX Thermal Rejection Gasket

Made from KIYLEX®, a patented, revolutionary, next-generation high-performance polymer. KIYLEX® is as strong as aluminum and can withstand temperatures up to 1100°F. This gasket is designed to insulate the intake manifold from conductive heat transfer from the cylinder head. This thermal barrier reduces manifold temperatures, which helps to lower Intake Air Temperatures (IAT), increase Front Mount Intercooler efficiency, and combat heat soak. CSF is the exclusive distributor of KIYLEX® intake manifold gaskets for the B58 engine.

Adding a thermal rejection gasket is especially beneficial for drag racing applications where cars typically sit between rounds. This causes the air-to-liquid manifold to heat soak significantly as there is no airflow through the front mount intercooler (which is responsible for cooling the charge air liquid passing through the manifold) while the car is idling. This results in higher initial IATs on subsequent launches than on the first launch.

The CSF manifold is constructed from Billet Aluminum and is 100% TIG welded for strength, allowing it to withstand higher boost pressures compared to the OEM plastic manifold. Aluminum has higher thermal conductivity than plastic, resulting in increased heat exchange between the cylinder head and the manifold. Adding a thermal rejection gasket reduces heat transfer between the two metal components (cylinder head and manifold). The gasket absorbs heat from the cylinder head and dissipates it rather than transferring it to the manifold.

The CSF Thermal Rejection Competition Spacer gasket was designed for dedicated motorsport vehicles requiring maximum cooling efficiency for competitive advantage. However, any vehicle will benefit significantly from the installation of this spacer.

Hardware Kit, Thoughtful Instruction Manual

Multiple brackets, bolts, washers, and fittings are included for installation. This is an exclusive CSF x VF Engineering design feature that was extremely difficult to not only design but also to manufacture. Numerous items come vacuum-sealed with corresponding letters noted on an easy-to-use Bill of Materials (BOM), along with component-specific diagrams and a simple step-by-step order of operations to follow during installation. Designed with the DIY mechanic, technician, racer, and enthusiast in mind.

Rear Air Bleed Ports & Overflow Tank Fitting

CSF has added a new swivel fitting -6 ORB 90 with clockwise adjustment. This gives the installer more flexibility in routing the overflow return line. The line can still be routed directly to the factory overflow tank as in the stock configuration. This new fitting also allows for the return line to be hidden, providing a clean and tidy return route to the factory overflow tank located at the front of the engine bay. A 40-inch overflow line hose is included and can be cut to length depending on preferences during plumbing. CSF has also sourced and included a quick-connect fitting for the factory overflow tank. This makes the connection to the overflow tank more secure. The fitting comes pre-installed on the overflow line, making installation simpler and faster.

Manifold Mounting

Mounting the manifold in the engine bay is fairly straightforward. However, there can be an issue with the bolt holes on the mounting bosses on the intake manifold side lining up perfectly. After several test fits, CSF determined that this issue could be resolved by slotting the mounting bosses. This allows the bolts to be installed prior to final positioning and makes installation slightly easier.
