BMW 135i 335i N54 N55 2007-2013 (E9X E82) Intercooler

do88 premium intercooler for BMW 135i / 335i (E9X / E82, N54 / N55, 2007–2013), engineered for OE-position fitment.

Key features

• Core volume 15,517 cm³ vs 6,933 cm³ — 124% larger than OEM
• Active cooling area 1,151 cm² vs 658 cm² — 75% larger
• Airflow at 0.15 bar pressure drop: 498 CFM vs 357 CFM — 41% higher
• Peak-power gain of +13 hp (measured on a 335xi N55 with a Stage 1 tune)
• Post-intercooler temperature: 43 °C vs 58 °C — 15 °C lower under identical conditions
• Full aluminium construction with solid TIG welds
• Standard Ø3" (76 mm) connections in place of OEM clip fittings

Background

The OEM 1-Series / 3-Series N54/N55 intercooler uses "click" couplings on both pipes. They are flow-restrictive and not particularly reliable at higher boost. The rubber pipes and the plastic "J-pipe" (intercooler outlet) are additional weak points. The common but mistaken belief that the intercooler only matters once tuning is significant doesn't hold — on warm days, repeat acceleration runs, or hard driving the OEM core overheats even on a fully stock car, and the promised power drops away.

Considerations

The 124% larger core volume is genuinely felt on the road: the engine pulls noticeably harder across the rev range and tolerates repeat acceleration without heat soak. Improved flow plus solid connections deliver better response, lower pressure drop, and an installation that actually holds high boost.

The finished product

The intercooler is space-optimised to drop into the OE position. The kit ships with a mandrel-bent 2.5" (63 mm) aluminium J-pipe and reinforced silicone hoses. Our J-pipe is compatible with the OEM charge pipe or with aftermarket charge pipes designed to mate with the OEM plastic J-pipe. The OEM plastic air shroud must be trimmed (see install instructions) — a dedicated shroud for the top edge of the core is also included to stop cooling air from slipping past the radiator.

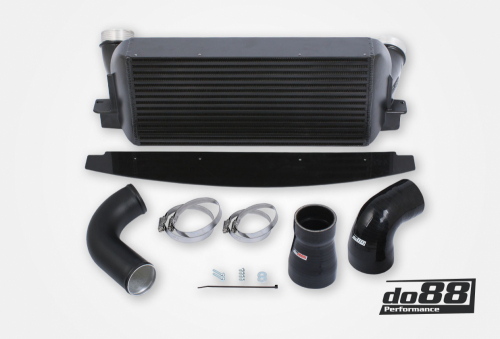

What's in the box

• do88 intercooler assembly
• 2.5" (63 mm) aluminium J-pipe
• Reinforced silicone hoses
• Plastic air shroud for the top of the core
• Bolts, washers, clamps
• Installation instructions

OE references: TR-270S
