GIRODISC A1-159 Kit Perednikh Halmivnykh Dyskiv For MCLAREN 675LT/650S/570S/570GT/MP4-12C (Zamina CCM)
Part numberA1-159

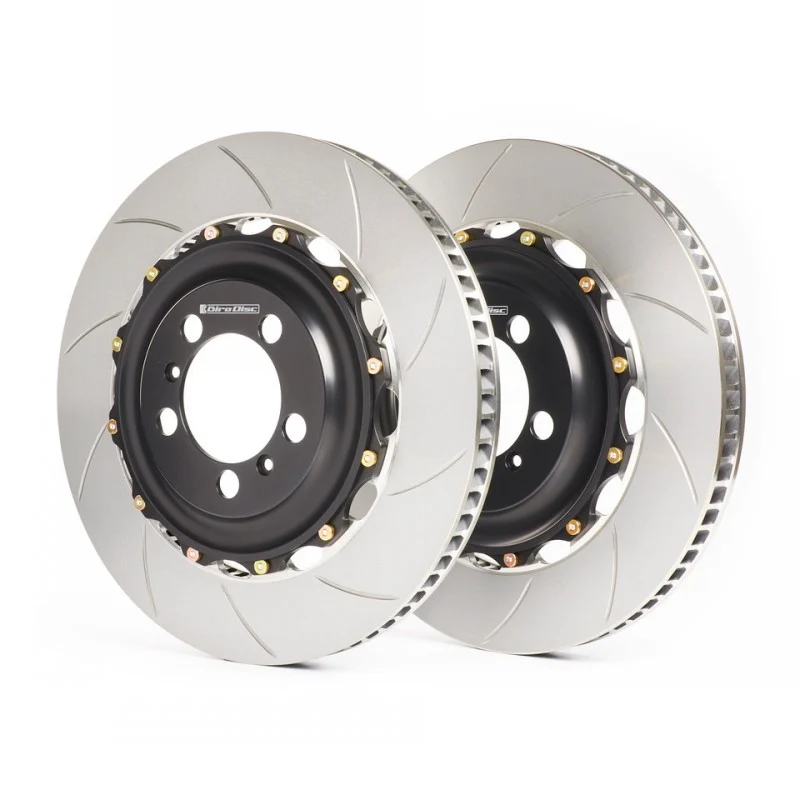

GIRODISC A1-159 Front Brake Disc Kit for MCLAREN 675LT / 650S / 570S / 570GT / MP4-12C (CCM Replacement)
The Girodisc A1-159 front brake kit is engineered as a high-performance replacement for the Carbon Ceramic Matrix (CCM) discs found on McLaren vehicles. The center hat is crafted from 6061-T6 aircraft-grade aluminum, while the friction ring is made from race-spec cast iron. Curved vane cooling acts as a centrifugal pump, actively drawing cool air through the disc and increasing thermal capacity under track conditions.
Specifications:
- Rotor Face: Straight Slotted
- Vane Type: Curved Vane
- Rotor Type: Vented, 2-Piece Floating
- Material: Cast Iron Rotor with 6061-T6 Aluminum Hat
- Rotor Diameter: 394 mm
- Minimum Thickness: 34.0 mm
- Maximum Thickness: 36.0 mm
- Drive System: 12 Cadmium-plated steel drive pins with Grade 12.9 bolts
- Package Contents: Pair (Left and Right Disc)
Benefits
- Floating two-piece design with 12 high-strength steel drive pins
- Cadmium plating provides corrosion resistance and extends service life
- Anti-rattle pucks reduce noise and allow for free thermal expansion
- Curved vane cooling passages enhance airflow
- Only the cast iron rotor ring is replaceable after installation
- Optimized for use with race pads and high-temperature brake fluid
Specifications
- Part number
- A1-159
